EWH Series Swing Drum Blender
簡介(Brief):
l 主要用于制藥、化工、食品等行業(yè)的物料混合。
Mainly applied by pharmacy, foodstuff and chemical industry.
l 適用于干塊狀、顆?；蚍勰┑幕旌?，大噸位混合。
Suitable to blend dry blocky, granules or powders; suit to mix large scale production.
l 不銹鋼制作，筒體轉動的同時伴隨軸向擺動，混合量大且均勻。
The machine is made with stainless steel. During processing, the drum rotating and swinging simultaneously which makes the blended materials more uniform in large quantity.
技術參數(shù)(Technical Specifications)：
|
型號 Model |
容積 Volume(L) |
裝料系數(shù) Load Coefficient |
裝料重量 Max.Load(kg) |

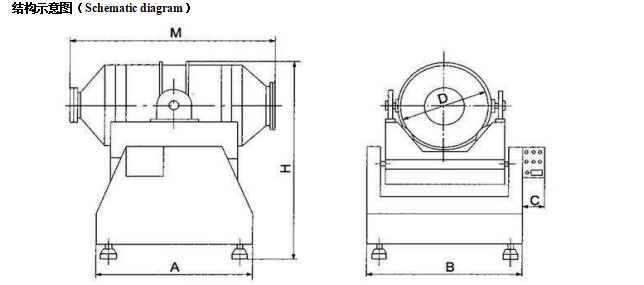

外形尺寸Overal Size（mm) |
功率 Power(kw) |
||||||
| A | B | C | D | M | H |
轉動 Rotary |
擺動 Swing |
||||
| EYH100 | 100 | 50 | 40 | 860 | 900 | 200 | 400 | 1000 | 1500 | 1.1 | 0.75 |
| EYH300 | 300 | 150 | 75 | 1000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
| EYH600 | 600 | 300 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
| EYH800 | 800 | 400 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
| EYH1000 | 1000 | 500 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
| EYH1500 | 1500 | 750 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
| EYH2000 | 2000 | 1000 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
| EYH2500 | 2500 | 1250 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
| EYH3000 | 3000 | 1500 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
| EYH5000 | 5000 | 2500 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
| EYH10000 | 10000 | 5000 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
| EYH12000 | 12000 | 6000 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
| EYH15000 | 15000 | 7500 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
