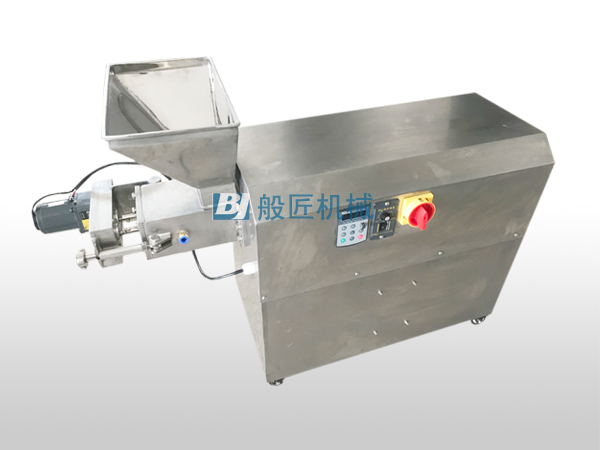

本機是一種將潮濕粉體混合料，在制粒機左右擠壓螺桿的擠壓下，軸向通過篩網擠出合格顆粒的一種專用設備。 該專用設備主要適用于醫藥，化工，食品，等行業中制造各種規格的顆粒，顆?？梢远ㄩL(選配切斷裝置），成品經干燥后可制成各種制品。例：食品用雞精，各種沖劑，化工制品等。
 This machine is a kind of special equipment that extrudes qualified particles through the screen in the axial direction of the wet powder mixture under the extrusion of the left and right extrusion screws of the granulator. This special equipment is mainly suitable for the manufacture of various specifications of particles in the pharmaceutical, chemical, food, and other industries. The particles can be fixed in length (optional cutting device), and the finished product can be made into various products after being dried. Example: Chicken Essence for Food, Various Granules, Chemical Products, etc.
二、設備工作原理（How the equipment works）：
電機動力由三角帶輪減速傳動至主機齒輪箱，經齒輪箱內部各傳動部件分配動力，傳動至各制粒左右螺桿運轉，原料由加料口加入，物料經制粒左右螺桿擠壓作用，向前端制粒模板強制壓料，并附帶一定的混合作用，物料擠入主擠壓機腔內后，經主槳特殊形狀的槳葉向外強制擠出，擠入到槳葉和制粒模板的間隙內，物料經擠壓后由制粒模板向外出料，(再經過外部制粒模板的切料鏟刀均勻地定長切斷)，制成合格成品。
The power of the motor is decelerated and transmitted to the main gear box by the V-belt wheel. The power is distributed by the transmission parts inside the gear box and transmitted to the left and right screws of each pelletizing. The raw materials are added from the feeding port. The granulation template is forced to press the material with a certain amount of mixing effect. After the material is squeezed into the cavity of the main extruder, it is forced to be extruded out through the special-shaped blade of the main blade, and squeezed into the gap between the blade and the granulation template. Inside, the material is extruded and discharged from the
granulation template, (then the material is cut by the cutting blade of the external granulation template evenly to a fixed length) to make qualified finished products.
三、機器特點（Machine characteristics）：
螺桿擠出造粒機分單螺桿和雙螺桿型，擠出形式有前出料和側出料兩種。經混合、捏和的濕物料或低軟化點（一般指小于50℃）物料在螺桿輸送、擠壓作用下，從機頭開孔模板擠出，再經過干燥或冷卻顆粒成品，從而實現將粉狀產品改變?yōu)榫鶆虻念w粒產品的目的。顆粒形狀為圓柱狀，成品顆粒直徑可由摸板開孔孔徑調節和控制。Screw extruder granulator is divided into single screw type and twin screw type. The extrusion type has two types: front discharge and side discharge. The mixed and kneaded wet materials or materials with low softening point (generally less than 50°C) are conveyed and extruded by the screw from the die plate of the die, and then the finished product is dried or cooled to realize the powder The purpose of changing the shape product into a uniform granular product. The particle shape is cylindrical, and the diameter of the finished particle can be adjusted and controlled by the hole diameter of the die plate.

前出料特點：本機適用于流動性較好，無熱敏性物料制粒。顆粒緊密，產量較高，制品顆粒較大，可增配水冷系統及切粒系統。Front discharge characteristics: This machine is suitable for granulating materials with good fluidity and no heat sensitivity. The particles are compact, the output is high, and the product particles are larger, and the water cooling system and the pelletizing system can be added.
側出料特點：本機針對前出料機型無法制粒的特定情況，可選用側出料機型，與前出料機型相比制品顆粒較小，產能較高。Side-discharge characteristics: This machine can choose the side-discharge model for the specific situation where the front-discharge model cannot pelletize. Compared with the front-discharge model, the product has smaller particles and higher production capacity.
