KZL系列


一、主要用途（The main purpose）：
快速整粒機機適用于中西藥、食品、化工顏料及飼料等行業中顆粒的破碎及整粒。將造粒后形狀及規格各異的顆粒經本機高速旋轉的刀片組合切割，經網板排出，便可有了形狀及規格基本一致的顆粒。
The fast granulator is suitable for crushing and granulating granules in Chinese and Western medicine, food, chemical pigments and feed industries. After granulation, the granules with different shapes and specifications are cut by the high-speed rotating blades of this machine,
and discharged through the screen plate, and then particles with basically the same shape and specifications can be obtained.
二、工作原理（working principle）：
電機動力直接傳動至制粒網旋轉，制粒刀固定，原料由加料口加入，物料進入制粒機腔，接觸高速旋轉的制粒網，產生離心力，固定制粒刀磨擦破碎較大的顆粒，成品通過篩孔向外篩出，完成整粒作用。
The power of the motor is directly driven to the rotation of the granulating net, the granulating knife is fixed, the raw materials are added from the feeding port, the material enters the cavity of the granulating machine, and it contacts the high-speed rotating granulating net to generate centrifugal force, and the fixed granulating knife rubs and breaks larger particles. The finished product is screened out through the sieve holes to complete the granulation function.
二、分類特點（ Classification characteristics）：

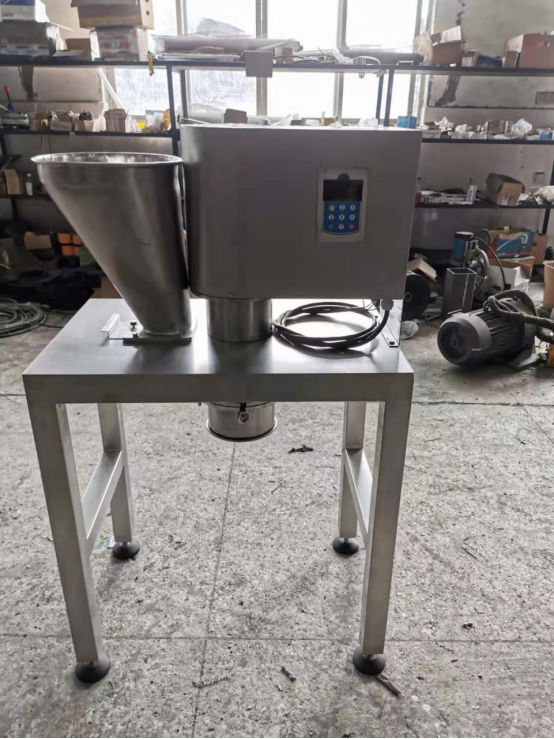

FZ機架式：本機型適合粗細不均物料的粉碎及整粒。外形美觀，移動方便，操作維護簡單。
FZ frame type: This model is suitable for crushing and granulating materials with uneven thickness. Beautiful appearance, easy to move, simple operation and maintenance.

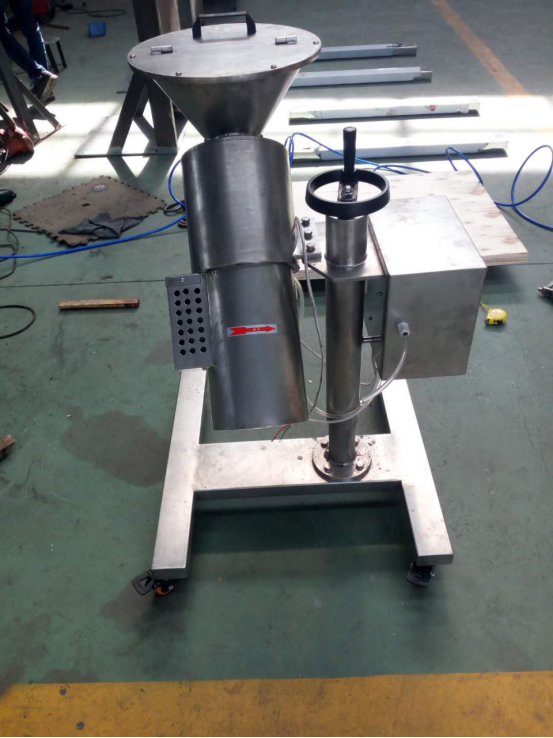

KZL斜式：本機為傳統機型，適合比重較輕物料的整粒。適用于單機小批量生產。
KZL inclined type: This machine is a traditional model, suitable for the whole grain of lighter materials. Suitable for single machine small batch production.
KXL管道式：管道式連接，可選擇單機或聯機使用，聯機使用時無塵。
KXL pipe type: pipe type connection, stand-alone or online use can be selected, and there is no dust when used online.
四、技術參數：
