簡介(Brief):
l 主要用于制藥、化工、食品等行業的分級篩選。
Mainly applied by pharmacy, foodstuff and chemical industry.
l 適用于干顆粒、粉末物料的過篩,適合各種批量生產。
To blend or screen dry granules or powder; suitable to large, medium or small scale production.

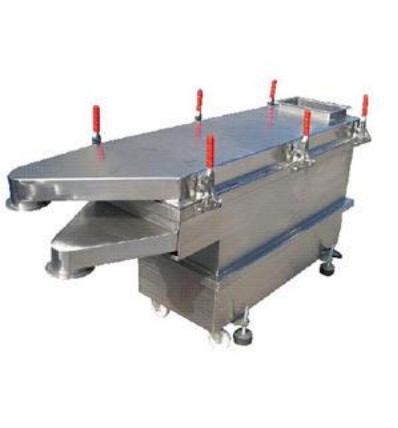

l 不銹鋼制作,可做成單層或多層;方形篩粉機,過篩面積大,對于有一定纖維性、粘性的物料均可順利過篩。
The machine is made with stainless steel and can be made with single or multi-floor. The square type screen has large sieving area and enhance the discharging speed for fibroid or sticky materials.
技術參數(Technical Specifications):
型號 Model | FS-500 | FS-800 | FS-1200 | FS-1800 | ZS-2000 | |
生產能力 Capacity | 80-850 Kg/h | 100-1100 Kg/h | 120-1200 Kg/h | 160-1600 Kg/h | 200-2000 Kg/h | |
過篩目數 Mesh | 2-200 Mesh | |||||
振動頻率 Vibrate Rate | 1400RPM | |||||
電機功率 Power | 2x0.18kw | 2x0.2kw | 2x0.4kw | 2x0.55kw | 2x1.1kw |
外形尺寸 Overall Size |
1200×600×1250 | 1200×600×1250 | 1980×1050×1450 | 2400×1200×1500 | 2800×1200×1600 |
